**FD130 /150 Alternate Full Download* Use this procedure to perform a full download on a terminal in which the memory has been cleared.**

* To Edit touch the box and key in new value, or press ENTER 9 to toggle between two boxes.

Part 1: OS Update

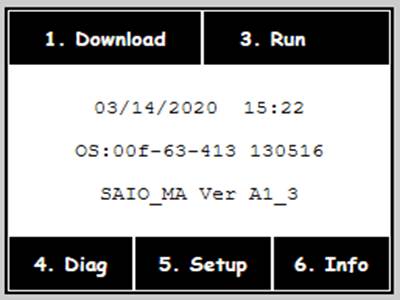

Touch [1. Download ]		Use this procedure if the FD130
does not retain the TLS 1.2
Certificates after a memory
clear.
Part 1 downloads the TLS 1.2
firmware over dial
Part 2 can then be performed
over IP

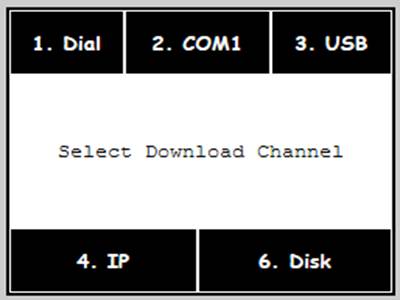

Touch [1. Port ]		Press Clear to backspace

Touch [4. IP ]
Key:

GDSPROD.FIRSTDATA.COM	V = Alpha Alpha Alpha 8
Key: 443	C = Alpha Alpha Alpha 2
Press Enter	. = Alpha Alpha Alpha 0

Touch [4. Save ]

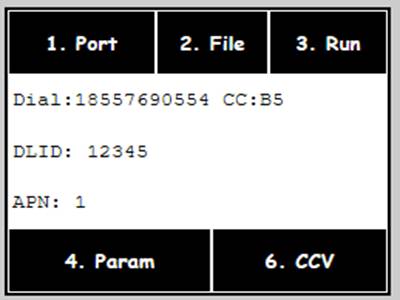

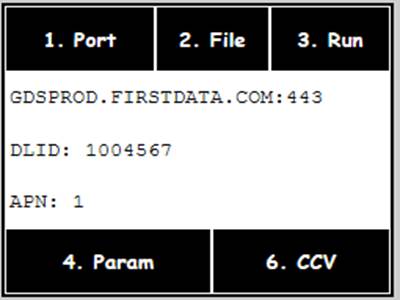

Touch [2. File ]

*Press Clear to backspace.

Key: [DLID] in TID:

**These values should be:**

MID: Leave it blank

TID: is the DLID

APN: 0

FName:

RKey: Leave it blank

FD130= GT2 or FD150= GT3

Press Enter

( G = Alpha 4 T = Alpha 8 )

APN:0

Touch [3. Run ]

The terminal will connect to the

*If the backlight turns off, just

DL server.

Once connected, the terminal

will display

File Downloading...

As the download progresses

touch the screen to turn it

each - will turn to a *

back on.

This download will take

approximately 1 minutes.

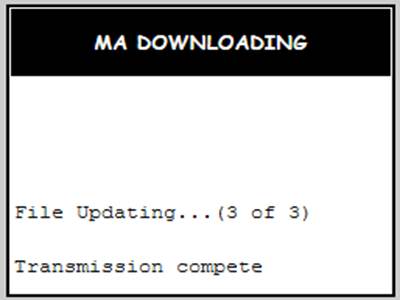

When finished the terminal will

Note: FD150: If you get a 'failed

display:

to import rsa.dll library' error

[Transmission Complete ]

then please clear the memory

Press Cancel 3 times

and retry Part 1 steps.

Key [990712]

Enter Password to Exit

Press Enter

Reboot the terminal

Part 2: Full Download

Touch [ GDS ]

This Part may be performed over

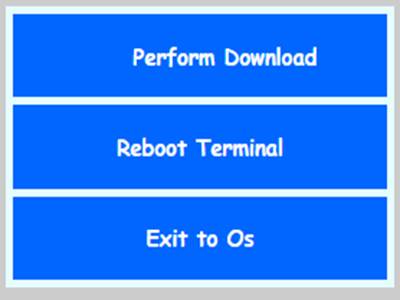

Touch [ Perform Download ]

Key [990712]

Enter Password to Exit

Press Enter

Touch [IP ]

Touch [FULL ]

Reset Key: Usually 10-Digits

CASES SENSITIVE

Key in the [ Retset Key ] *If no reset key provided, press enter to Bypass*		Note: If you need to switch
between Upper and lowercase
you will press the [Alpha &
Enter] key at the same time.
Press Enter	Note: RKey only required if
file manually 'Reset' or
downloading pre-exising file
on new equipment.
Please NOTE Rkey is Case
